I figured it would be good to have a dedicated thread for graphical demos in any language for the PicoCalc.
(Also, I wanted to post this to the FORTH on the PicoCalc thread, but the board would not allow me to make another post there as I had made the three last posts, but when I tried to modify an existing post to include this it did not show the thread as having new content.)
A while back I wrote a raytracing demo for the Tufty 2040, which I have now ported to the PicoCalc with the RP2350 using hardware single-precision floating point (the original program used S15.16 fixed point, which was non-ideal for a number of reasons). The code can be gotten from zeptoforth/test/rp2350/picocalc_raytracing_ground_light.fs at master · tabemann/zeptoforth · GitHub.

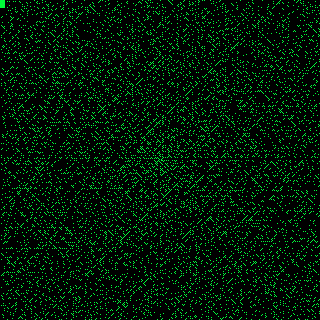

Here is a screenshot:
And here is the full source code:
\ Copyright (c) 2023-2025 Travis Bemann
\
\ Permission is hereby granted, free of charge, to any person obtaining a copy
\ of this software and associated documentation files (the "Software"), to deal
\ in the Software without restriction, including without limitation the rights
\ to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
\ copies of the Software, and to permit persons to whom the Software is
\ furnished to do so, subject to the following conditions:
\
\ The above copyright notice and this permission notice shall be included in
\ all copies or substantial portions of the Software.
\
\ THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
\ IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
\ FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
\ AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
\ LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
\ OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
\ SOFTWARE.
begin-module raytracing
oo import
pixmap8 import
st7365p-8-common import
float32 import
picocalc-term import
\ Columns
320 constant my-cols
\ Rows
320 constant my-rows
\ Three-element constant
: 3constant ( a b c "name" -- )
: rot lit, swap lit, lit, postpone ;
;
\ Background color
0.5e0 0e0 0e0 3constant background-color
\ Shadow color
0e0 0e0 0e0 3constant shadow-color
\ Eye coordinate
0e0 0e0 3.20e0 3constant eye-coord
\ Light coordinate
-50e0 value light-x
50e0 value light-y
25e0 value light-z
: light-coord light-x light-y light-z ;
\ -50e0 50e0 0e0 3constant light-coord
\ Find an entity along a line
defer find-entity ( sx sy sz vx vy vz exclude -- entity distance hit? )
\ Entity class
<object> begin-class <entity>
\ Is there a hit?
method point-hit? ( sx sy sz vx vy vz self -- distance hit? )
\ Get point color
method point-color ( hx hy hz vx vy vz self -- r g b )
end-class
\ Implement entity class
<entity> begin-implement
end-implement
\ Sphere class
<entity> begin-class <sphere>
cell member sphere-radius
cell member sphere-x
cell member sphere-y
cell member sphere-z
end-class
\ Add two vectors
: vect+ { ax ay az bx by bz -- cx cy cz } ax bx v+ ay by v+ az bz v+ ;
\ Subtract two vectors
: vect- { ax ay az bx by bz -- cx cy cz } ax bx v- ay by v- az bz v- ;
\ Multiply a vector by a scalar
: vect* { ax ay az n -- bx by bz } ax n v* ay n v* az n v* ;
\ Get the dot product of two vectors
: dot { ax ay az bx by bz -- dot } ax bx v* ay by v* az bz v* v+ v+ ;
\ Get the cross product of two vectors
: cross { ax ay az bx by bz -- cx cy cz }
ay bz v* az by v* v- az bx v* ax bz v* v- ax by v* ay bx v* v-
;
\ Get the magnitude of a vector
: mag { x y z -- magnitude } x x v* y y v* z z v* v+ v+ vsqrt ;
\ Get the unit vector of a vector
: unit { x y z -- ux uy uz }
x y z mag { dist } x dist v/ y dist v/ z dist v/
;
\ Get the distance between two points
: dist ( ax ay az bx by bz -- distance ) vect- mag ;
\ Get the minimum root of an ax^2 + bx + c equation
: minroot { a b c -- x found? }
a v0= if
c vnegate b v/ true
else
b b v* 4e0 a v* c v* v- { disc }
disc v0>= if
disc vsqrt { disc' }
2e0 a v* { 2a }
b vnegate disc' v+ b vnegate disc' v- vmin 2a v/ true
else
0e0 false
then
then
;
\ Implement sphere class
<sphere> begin-implement
\ Constructor
:noname { radius x y z self -- }
self <entity>->new
radius self sphere-radius !
x self sphere-x !
y self sphere-y !
z self sphere-z !
; define new
\ Is there a hit?
:noname { sx sy sz vx vy vz self -- distance hit? }
sx sy sz self sphere-x @ self sphere-y @ self sphere-z @ vect-
{ osx osy osz }
1e0 \ vx vy vz vx vy vz dot
osx osy osz vx vy vz dot 2e0 v*
osx osy osz osx osy osz dot abs self sphere-radius @ dup v* v-
minroot
; define point-hit?
end-implement
\ The colored sphere class
<sphere> begin-class <colored-sphere>
cell member sphere-r
cell member sphere-g
cell member sphere-b
end-class
\ Implement the colored sphere class
<colored-sphere> begin-implement
\ Constructor
:noname { radius x y z r g b self -- }
radius x y z self <sphere>->new
r self sphere-r !
g self sphere-g !
b self sphere-b !
; define new
\ Get point color
:noname { hx hy hz vx vy vz self -- r g b }
self sphere-x @ self sphere-y @ self sphere-z @ hx hy hz vect- unit
{ nx ny nz }
hx hy hz light-coord vect- unit { lx ly lz }
hx hy hz lx ly lz -1e0 vect* 0 find-entity nip nip not if
nx ny nz lx ly lz dot 0e0 vmax 1e0 vmin { lambert }
self sphere-r @ self sphere-g @ self sphere-b @ lambert vect*
else
shadow-color
then
; define point-color
end-implement
\ The mirror sphere class
<sphere> begin-class <mirror-sphere>
cell member mirror-sphere-r
cell member mirror-sphere-g
cell member mirror-sphere-b
cell member mirror-sphere-a
end-class
\ Implement the mirror sphere class
<mirror-sphere> begin-implement
\ Constructor
:noname { radius x y z r g b a self -- }
radius x y z self <sphere>->new
r a v* self mirror-sphere-r !
g a v* self mirror-sphere-g !
b a v* self mirror-sphere-b !
a self mirror-sphere-a !
; define new
\ Get point color
:noname { hx hy hz vx vy vz self -- r g b }
self sphere-x @ self sphere-y @ self sphere-z @ hx hy hz vect- unit
{ nx ny nz }
vx vy vz nx ny nz nx ny nz vx vy vz dot vect* 2e0 vect* vect-
unit { rx ry rz }
hx hy hz rx ry rz self find-entity if { entity distance }
rx ry rz distance vect* hx hy hz vect+ rx ry rz entity point-color
else
2drop background-color
then
{ r g b }
hx hy hz light-coord vect- unit { lx ly lz }
hx hy hz lx ly lz -1e0 vect* 0 find-entity nip nip not if
nx ny nz lx ly lz dot 0e0 vmax 1e0 vmin { lambert }
self mirror-sphere-r @
self mirror-sphere-g @
self mirror-sphere-b @ lambert vect*
else
shadow-color
then
{ mr mg mb }
self mirror-sphere-a @ { a } 1e0 a v- { a' }
r a' v* mr v+ g a' v* mg v+ b a' v* mb v+
; define point-color
end-implement
\ Plane class
<entity> begin-class <plane>
cell member plane-x
cell member plane-y
cell member plane-z
cell member plane-nx
cell member plane-ny
cell member plane-nz
end-class
\ Implement plane class
<plane> begin-implement
\ Constructor
:noname { x y z nx ny nz self -- }
self <entity>->new
nx ny nz unit to nz to ny to nx
x self plane-x !
y self plane-y !
z self plane-z !
nx self plane-nx !
ny self plane-ny !
nz self plane-nz !
; define new
\ Is there a hit?
:noname { sx sy sz vx vy vz self -- distance hit? }
self plane-nx @ self plane-ny @ self plane-nz @ { nx ny nz }
nx ny nz vx vy vz dot { denom }
denom v0<> if
self plane-x @ self plane-y @ self plane-z @ sx sy sz vect- nx ny nz dot
denom v/ { n }
n v0>= n 16384e0 v< and if n true else 0e0 false then
else
0 false
then
; define point-hit?
end-implement
\ Tiled plane
<plane> begin-class <tiled-plane>
cell member plane-ax
cell member plane-ay
cell member plane-az
cell member plane-bx
cell member plane-by
cell member plane-bz
cell member plane-r0
cell member plane-g0
cell member plane-b0
cell member plane-r1
cell member plane-g1
cell member plane-b1
cell member plane-tile-size
end-class
\ Implement tiled plane
<tiled-plane> begin-implement
\ Constructor
:noname { x y z nx ny nz ax ay az r0 g0 b0 r1 g1 b1 tile-size self -- }
x y z nx ny nz self <plane>->new
ax ay az unit to az to ay to ax
ax self plane-ax !
ay self plane-ay !
az self plane-az !
self plane-nx @ self plane-ny @ self plane-nz @ ax ay az cross
self plane-bz ! self plane-by ! self plane-bx !
r0 self plane-r0 !
g0 self plane-g0 !
b0 self plane-b0 !
r1 self plane-r1 !
g1 self plane-g1 !
b1 self plane-b1 !
tile-size self plane-tile-size !
; define new
\ Get point color
:noname { hx hy hz vx vy vz self -- r g b }
light-coord { lx' ly' lz' }
lx' hx v- dup v*
ly' hy v- dup v* v+
lz' hz v- dup v* v+ vsqrt 180e0 v>= if
shadow-color exit
then
hx hy hz self plane-x @ self plane-y @ self plane-z @ vect- { cx cy cz }
self plane-ax @ self plane-ay @ self plane-az @ cx cy cz dot { dx }
self plane-bx @ self plane-by @ self plane-bz @ cx cy cz dot { dy }
dx self plane-tile-size @ v/ v>f64 floor { dx' }
dy self plane-tile-size @ v/ v>f64 floor { dy' }
dx' 2 mod 0= dy' 2 mod 0= xor if
self plane-r0 @ self plane-g0 @ self plane-b0 @
else
self plane-r1 @ self plane-g1 @ self plane-b1 @
then
{ r g b }
hx hy hz lx' ly' lz' vect- unit { lx ly lz }
hx hy hz lx ly lz -1e0 vect* 0 find-entity nip nip not if
self plane-nx @ self plane-ny @ self plane-nz @
lx ly lz dot 0e0 vmax 1e0 vmin { lambert }
r g b lambert vect*
else
shadow-color
then
; define point-color
end-implement
<colored-sphere> class-size buffer: my-sphere-0
<colored-sphere> class-size buffer: my-sphere-1
<colored-sphere> class-size buffer: my-sphere-2
<colored-sphere> class-size buffer: my-sphere-3
<mirror-sphere> class-size buffer: my-sphere-4
<tiled-plane> class-size buffer: my-plane
create my-entities
my-sphere-0 ,
my-sphere-1 ,
my-sphere-2 ,
my-sphere-3 ,
my-sphere-4 ,
my-plane ,
6 constant entity-count
\ Find the closest, if any, entity
:noname { sx sy sz vx vy vz exclude -- entity distance hit? }
0 0 false { found-entity distance hit? }
entity-count 0 ?do
my-entities i cells + @ { entity }
entity exclude <> if
sx sy sz vx vy vz entity point-hit? if { entity-distance }
hit? not entity-distance distance v< or entity-distance v0> and if
entity to found-entity
entity-distance to distance
true to hit?
then
else
drop
then
then
loop
found-entity distance hit?
; is find-entity
\ Send a ray
: send-ray { sx sy sz vx vy vz -- r g b }
sx sy sz vx vy vz 0 find-entity if { entity distance }
vx vy vz distance vect* sx sy sz vect+ vx vy vz entity point-color
else
drop drop background-color
then
;
\ Convert a coordinate
: convert-coord { x y -- x' y' }
x [ my-cols 2 / ] literal - n>v 100e0 v/
y negate [ my-rows 2 / ] literal + n>v 100e0 v/
;
\ Color dithering table
create color-table
0.8e0 , 1e0 , 1.2e0 , 1e0 , 0.8e0 , 1e0 , 1.2e0 , 1e0 ,
1e0 , 1.1e0 , 1e0 , 0.9e0 , 1e0 , 1.1e0 , 1e0 , 0.9e0 ,
1.2e0 , 1e0 , 0.8e0 , 1e0 , 1.2e0 , 1e0 , 0.8e0 , 1e0 ,
1e0 , 0.9e0 , 1e0 , 1.1e0 , 1e0 , 0.9e0 , 1e0 , 1.1e0 ,
0.8e0 , 1e0 , 1.2e0 , 1e0 , 0.8e0 , 1e0 , 1.2e0 , 1e0 ,
1e0 , 1.1e0 , 1e0 , 0.9e0 , 1e0 , 1.1e0 , 1e0 , 0.9e0 ,
1.2e0 , 1e0 , 0.8e0 , 1e0 , 1.2e0 , 1e0 , 0.8e0 , 1e0 ,
1e0 , 0.9e0 , 1e0 , 1.1e0 , 1e0 , 0.9e0 , 1e0 , 1.1e0 ,
\ Convert a color
: convert-color { r g b x y -- color }
x 3 and y 3 and 8 * + cells color-table + @ { factor }
r 255e0 v* factor v* vround-zero v>n 0 max 255 min
g 255e0 v* factor v* vround-zero v>n 0 max 255 min
b 255e0 v* factor v* vround-zero v>n 0 max 255 min rgb8
;
\ Draw world
: draw-world ( -- )
page
[: { display }
display clear-pixmap
display update-display
;] with-term-display
1e0 2.5e0 2.5e0 -6.4e0 0e0 1e0 0e0 <colored-sphere> my-sphere-0 init-object
1.5e0 0e0 -1e0 -4.8e0 1e0 0e0 0e0 <colored-sphere> my-sphere-1 init-object
2e0 -2.5e0 3e0 -10e0 0e0 0e0 1e0 <colored-sphere> my-sphere-2 init-object
0.75e0 -2e0 1e0 -3.6e0 0e0 1e0 1e0 <colored-sphere> my-sphere-3 init-object
1.5e0 0e0 2.5e0 -7.5e0 1e0 0e0 1e0 0.25e0 <mirror-sphere> my-sphere-4 init-object
0e0 -20e0 0e0 0e0 -1e0 0e0 1e0 0e0 0e0 0.75e0 0e0 0e0 0e0 0.75e0 0e0 10e0
<tiled-plane> my-plane init-object
my-rows 0 ?do
i [: { y display }
my-cols 0 ?do
i y convert-coord 0e0 eye-coord vect- unit { vx vy vz }
eye-coord vx vy vz send-ray i y convert-color
i y display draw-pixel-const
loop
display update-display
;] with-term-display
loop
begin key? until
key drop
;
end-module
