Next on my wish list

PicoCalc
1

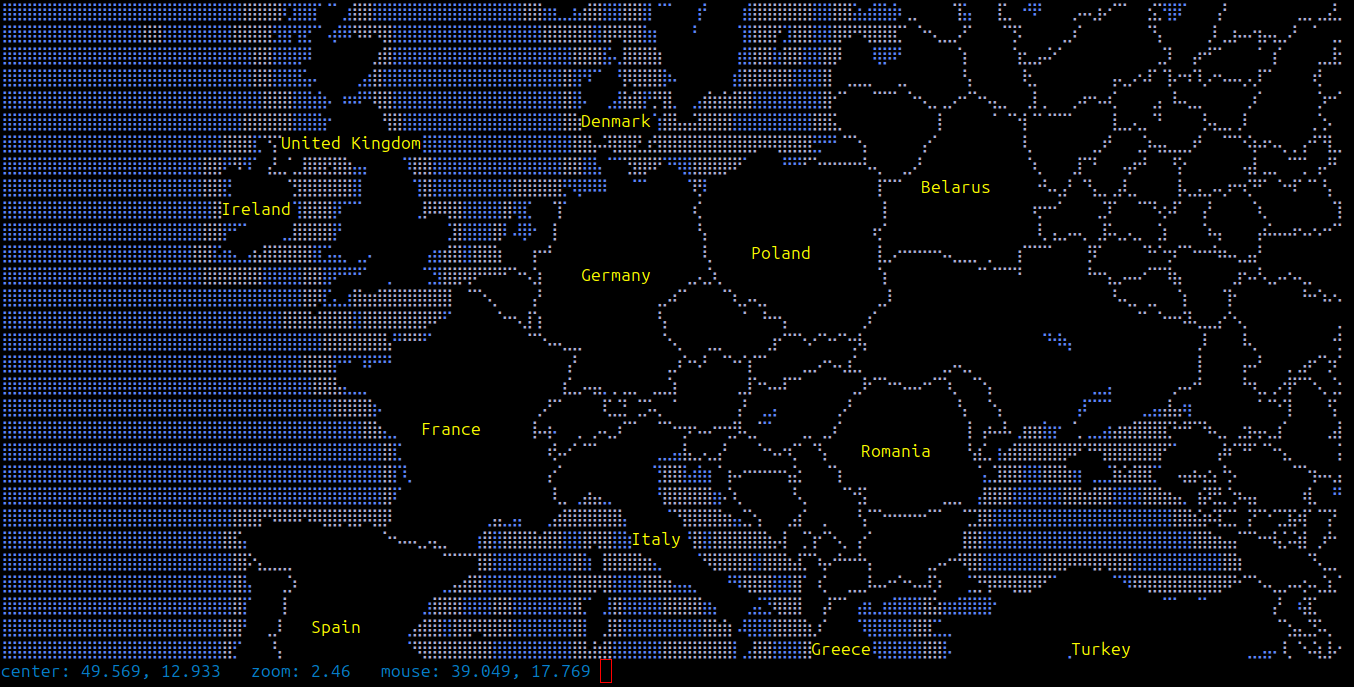

Screenshot from 2025-08-04 18-01-35
Screenshot from 2025-08-04 18-01-351354×687 41.5 KB

Screenshot from 2025-08-04 18-03-15
Screenshot from 2025-08-04 18-03-151354×687 34.5 KB

I’m dreaming the day we’ll have something similar on PicoCalc with an Pico 2W in it.

For those who don’t know what it is, mapscii is like Maps , but runs in terminal.

I think this would be my next project, after I’m done with the calculator app.

Hope I’m not dreaming for too much…

6 Likes
2

it might be easier (in my opinion anyway, if i were to do something like this) to forgo the ASCII conversion altogether and just use the original vector maps to draw as regular lines on the screen, no?

3

I’m actually working on a gps/map system right now :sweat_smile:

1 Like
4

[Off Topic]

¿Has publicado un hilo sobre el desarrollo de la calculadora?
Me interesa! :slight_smile:
Saludos.

5

1000027340
10000273401836×4080 701 KB

3 Likes
6

Is still work in progress, but you can test it:

' --------------------------
' Define colors
' --------------------------
bl=RGB(blue)
gr=RGB(green)
bk=RGB(black)
wt=RGB(white)
gy=RGB(gray)
rd=RGB(red)

' --------------------------
' UI box dimensions
' --------------------------
Dim x(3), y(2)
w=73
h=68
x(0)=10 : x(1)=85 : x(2)=160 : x(3)=235
y(0)=110 : y(1)=180 : y(2)=250

' --------------------------
' Define function labels
' --------------------------
Dim fun$(2,3)
fun$(0,0)="e"       : fun$(0,1)="pi"     : fun$(0,2)="%"     : fun$(0,3)="ANS"
fun$(1,0)="log"     : fun$(1,1)="ln"     : fun$(1,2)="x^y"   : fun$(1,3)="x!"
fun$(2,0)="sqrt"    : fun$(2,1)="sin(x)" : fun$(2,2)="cos(x)": fun$(2,3)="tg(x)"

' --------------------------
' Draw initial UI
' --------------------------
CLS
Box 0, 0, 320, 320, , bk, bk
Box 10, 10, 298, 80, 2, gr, wt

For r=0 To 2
  For c=0 To 3
    Box x(c), y(r), w, h, 2, wt, gy
    Text x(c)+w/2, y(r)+h/2, fun$(r,c), "CM",,,wt,gy
  Next
Next

' --------------------------
' Get user input
' --------------------------
Color rd, wt
Text 20, 60, ">", "LT",,, rd, wt
Input "", input$
'input$=TRIM$(input$)

' --------------------------
' Selection logic
' --------------------------
r=0 : c=0
editing%=1

Do While editing%
  ' Highlight current box
  Box x(c), y(r), w, h, 2, gr, gy
  Text x(c)+w/2, y(r)+h/2, fun$(r,c), "CM",,,gr,gy

  a$=Inkey$
  If a$<>"" Then
    ' Remove highlight
    Box x(c), y(r), w, h, 2, wt, gy
    Text x(c)+w/2, y(r)+h/2, fun$(r,c), "CM",,,wt,gy

    Select Case a$
      Case Chr$(130) : If c>0 Then c=c-1 ' Left
      Case Chr$(131) : If c<3 Then c=c+1 ' Right
      Case Chr$(128) : If r>0 Then r=r-1 ' Up
      Case Chr$(129) : If r<2 Then r=r+1 ' Down
      Case Chr$(27)  : editing%=0           ' ESC to exit
      Case Chr$(13)  ' Enter to apply function
        On ERROR SKIP
        Select Case fun$(r,c)
          Case "e"       : result=Exp(1)
          Case "pi"      : result=Pi
          Case "%"       : result=Eval(input$)/100
          Case "ANS"     : ' just show previous result again
          Case "log"     : result=LOG10(Eval(input$))
          Case "ln"      : result=Log(Eval(input$))
          Case "x^y"     : result=Eval(input$) ' expecting expression like 2^3
          Case "x!"      : result=FACT(Eval(input$))
          Case "sqrt"    : result=Sqr(Eval(input$))
          Case "sin(x)"  : result=Sin(Eval(input$))
          Case "cos(x)"  : result=Cos(Eval(input$))
          Case "tg(x)"   : result=Tan(Eval(input$))
        End Select
        On ERROR ABORT

        ' Redraw result box
        Box 10, 10, 298, 80, 2, gr, wt
        Text 20, 60, Str$(result), "LT",,, rd, wt
    End Select
  EndIf
Pause 200
Loop

' --------------------------
' Exit and reset screen
' --------------------------
Color gr, bk
CLS bk
2 Likes
7

I’ve did a mathematical function plotter if you want to have a look:
