uEXB - Basic Expansion Board for uConsole

[Zucker]

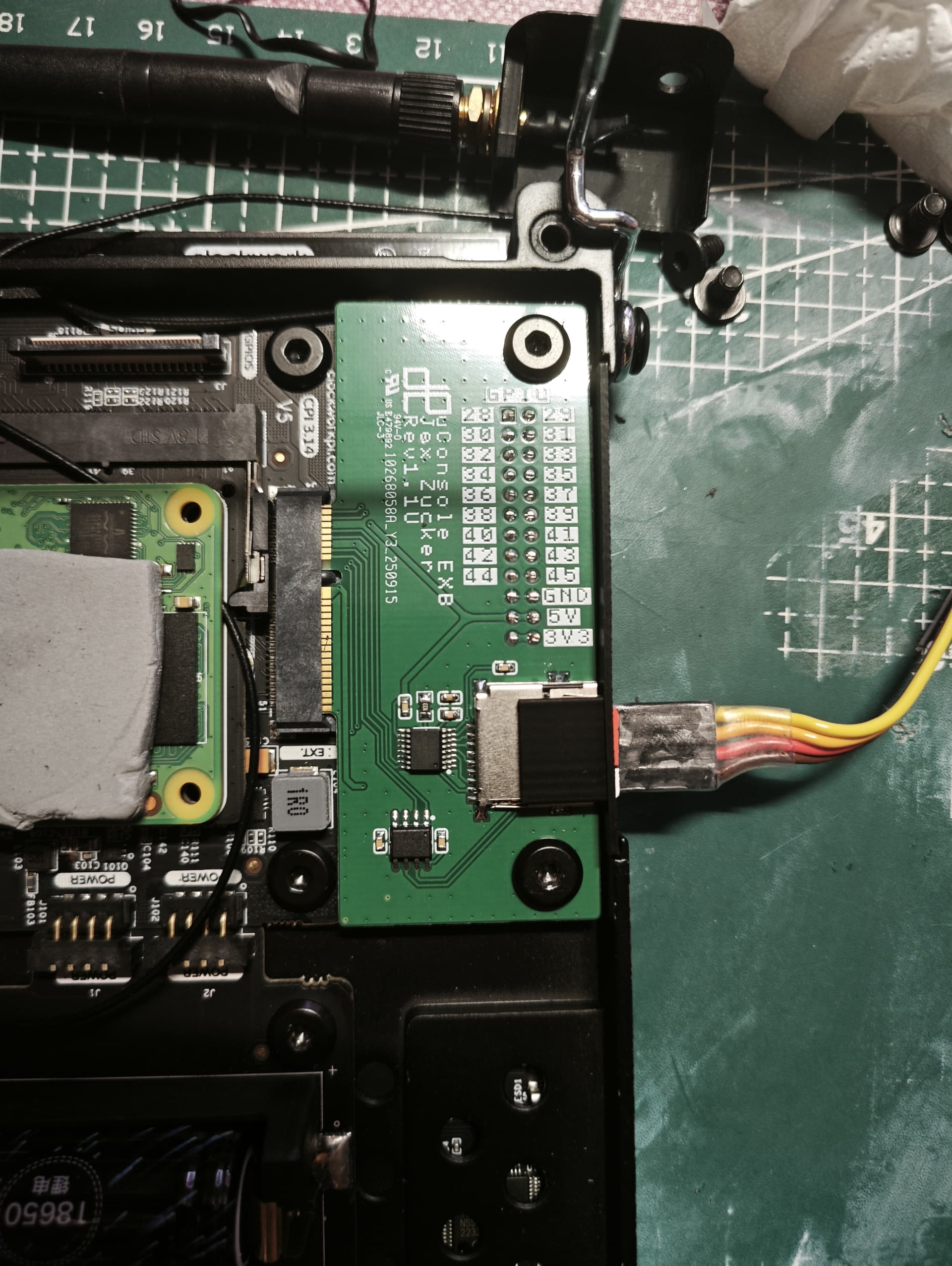

I designed a super basic expansion board for the uConsole, called the uEXB. It’s got just a microSD slot and an internal-facing USB port (you can solder or connect USB devices internally—like the NIC in the image). It also exposes all the GPIO pins from the PCIe interface. Check the pin mapping in the diagram or schematic!

SCH_2025-06-18.pdf
PCB_2025-06-18.pdf
barrier.stl
uConsole EXB_2025-06-19.epro

Heads up: Don’t solder the surface-mount USB-A port—it’s a design mistake. Otherwise, the back panel won’t fit!

FYI: I designed this in JLCPCB EDA Pro, so the included uConsole EXB_2025-06-19.epro is their professional format export. KiCad should import it—but expect some quirks!

[AleReb]

Nice i’m trying add camera conector would be Nice i You add kikad files thanks

[Zucker]

@Zucker

FYI: I designed this in JLCPCB EDA Pro, so the included uConsole EXB_2025-06-19.epro is their professional format export. KiCad should import it—but expect some quirks!

You can try importing it into KiCad — the graphics should come through fine, but reference designators might get messed up!

[AleReb]

@Zucker

uConsole EXB_2025-06-19.epro

thanks i never see jlcpcb im gona try!

[AleReb]

Hey i Made a board like i whant exposed gpios and camera can You check if You wish bery thanks Seeking Review: uEXC - uConsole Expansion Board (GPIO, Camera, I2C)

[Zucker]

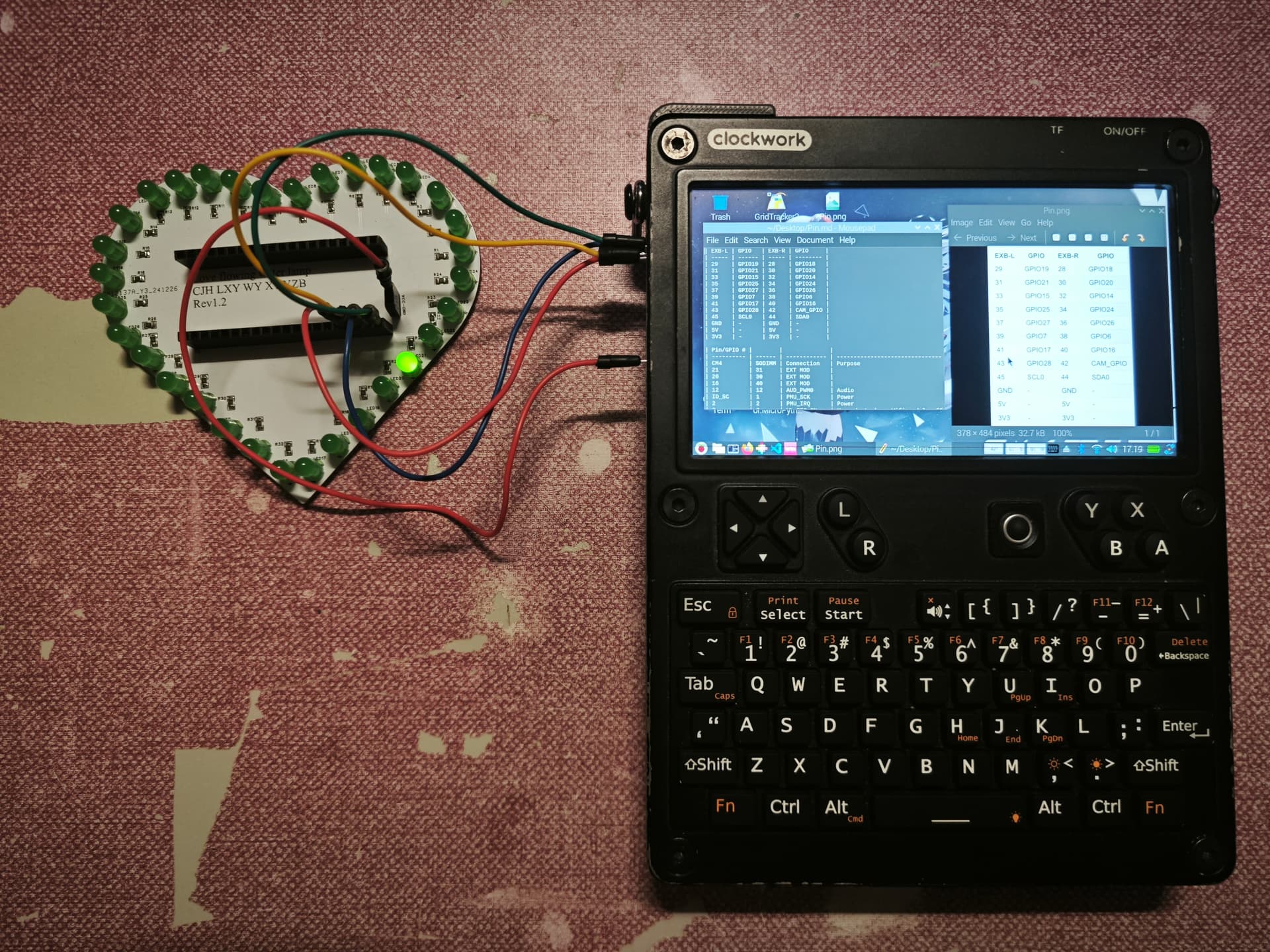

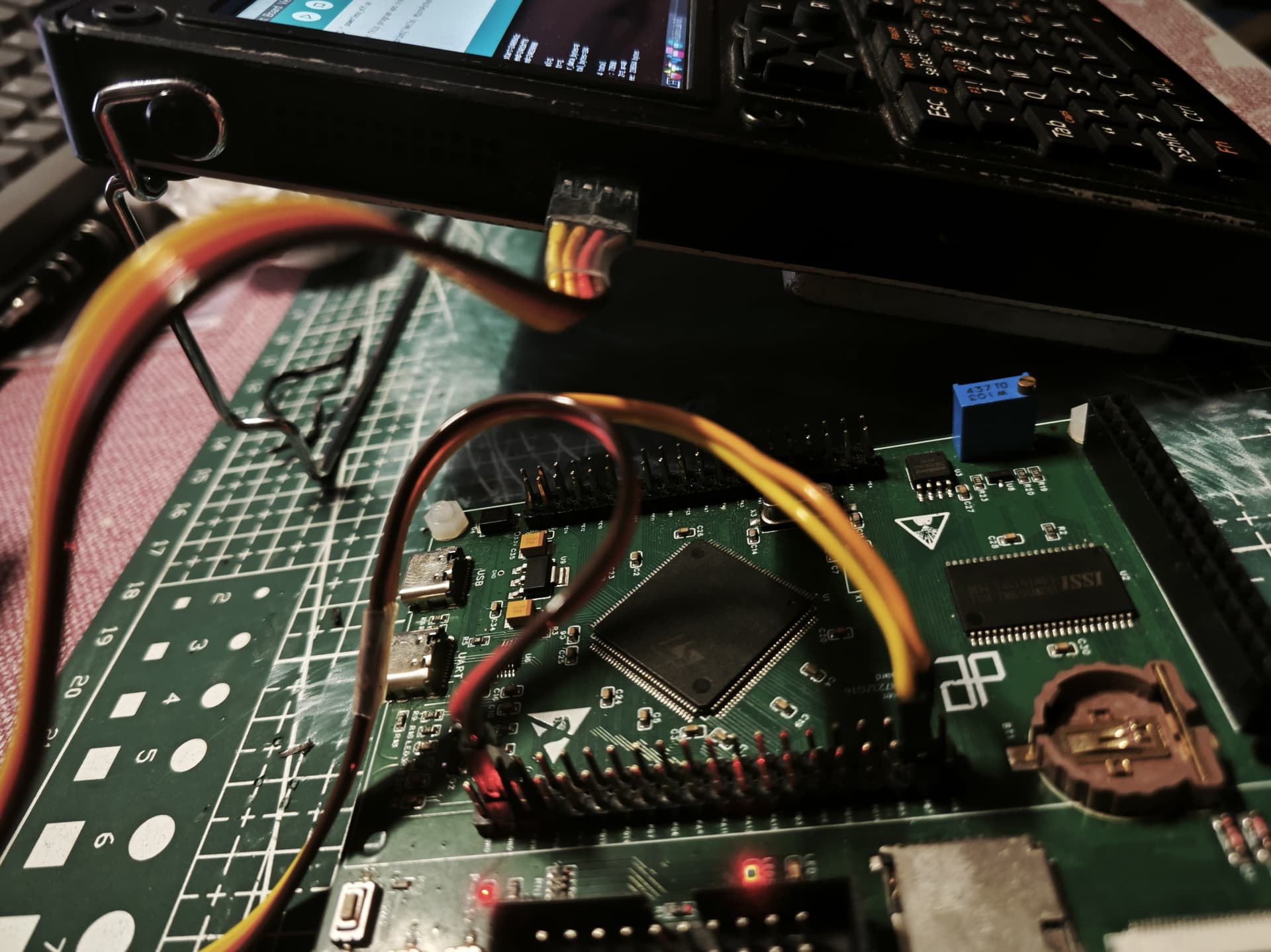

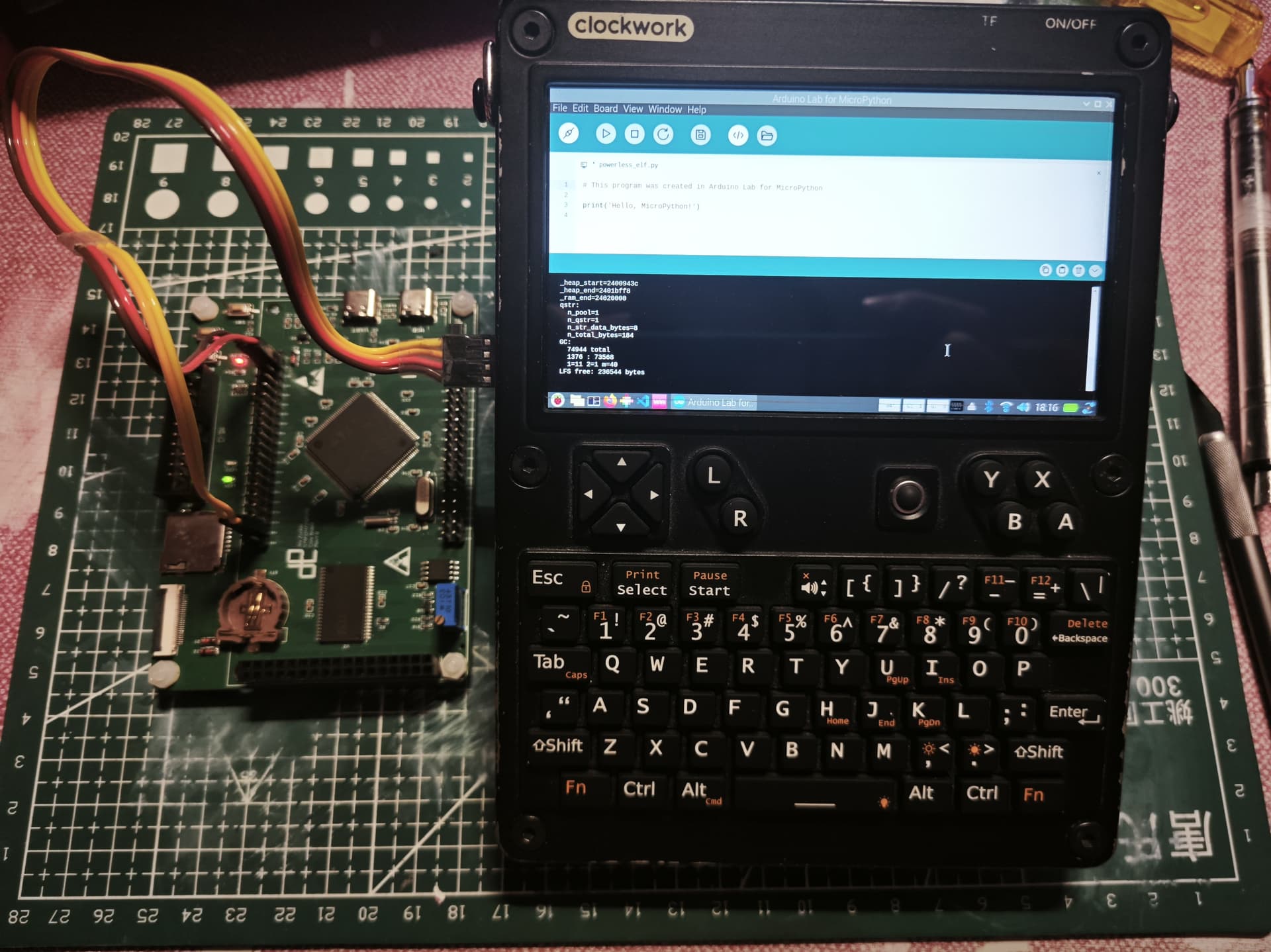

I felt that the internal USB port was not very useful except for connecting a network card, so I replaced it with a CH340. Combined with a female header and Dupont wires, it can easily debug serial ports.
