This is a quick way to add extensions inside the chassis. With a 1x4 usb 2.0 hub, we could host a sound card, a usb-pcmcia adapter, parallel/serial port, etc. etc.

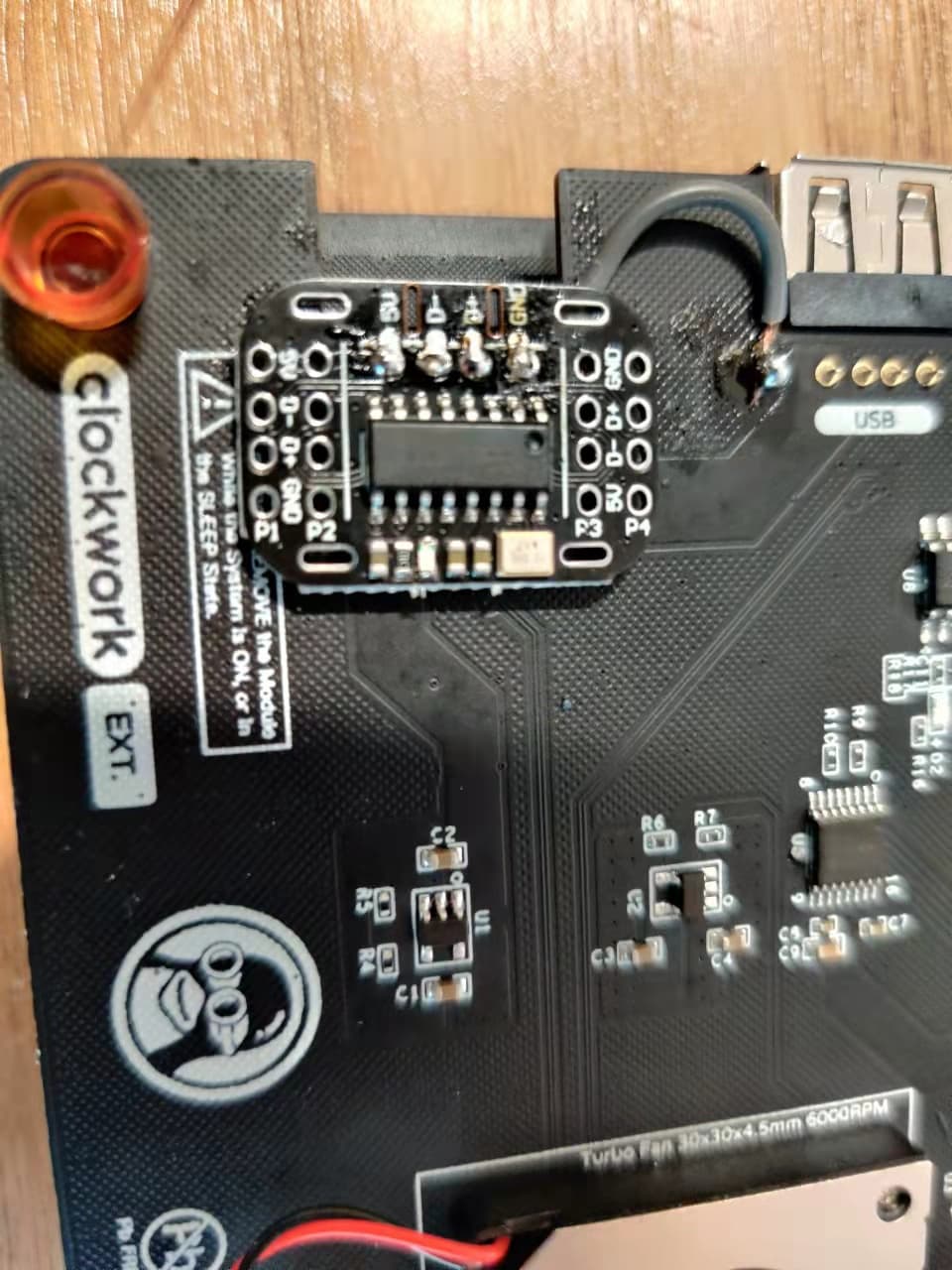

The hub is small:
To connect the hub, one USB port on the EXT board has to be removed:
Note: The pads for the original usb port are not spaced evenly 2.54mm, so I have to break the connector pins into individual ‘needles’ and adjust the position one by one, to fit the 2.54mm cutehub.
I don’t want to leave a hole on the outside, and I want to control the power of individual devices, so I added a few switches where the original USB port was:
The switches turn out to be very useful: Teensy draws about 500mA(!) so when not used, better turn it off.
With switches off:
Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 001 Device 004: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 009: ID 1eaf:0024 Leaflabs DevTerm
Bus 001 Device 002: ID 05e3:0608 Genesys Logic, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
axp20x_battery-0: 3.941V, 1.002A
With Teensy switch on:
Bus 004 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 002 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
Bus 003 Device 001: ID 1d6b:0001 Linux Foundation 1.1 root hub
Bus 001 Device 011: ID 16c0:048a Van Ooijen Technische Informatica M8
Bus 001 Device 004: ID 1a40:0101 Terminus Technology Inc. Hub
Bus 001 Device 002: ID 05e3:0608 Genesys Logic, Inc. Hub
Bus 001 Device 001: ID 1d6b:0002 Linux Foundation 2.0 root hub
axp20x_battery-0:3.906v, 1.325A
wrt. schematic: sorry I mostly improvised the connections
anyway the wiring is simple, and the most challenging part is to remove the original usb port… I ended up cutting the “landing pads” which are too cumbersome to unsolder.
After removing the usb port, 4 pads are exposed: 5V, DM, DP, GND.
The EXT board marks 5V as 1 and GND as 4, straightforward.
For power control: connect a switch between hub downlink 5v and device 5v. When 5v is floating, by usb standard the device won’t connect (it becomes unpowered in our case)
